3.5 inch IPS-TFT 320 * 480 resolution MIPI interface with 24PIN capacitive touch screen
Product Overview
1.1 Description
YT035B006_V01 is an active matrix TFT-LCD model that uses amorphous silicon TFT (thin film transistor) as the active switching device. It is a transmissive display that operates in normal black color. The effective area of this TFT LCD display is measured diagonally at 3.5 inches, with an array of 320 horizontal by 480 vertical pixels. Each pixel is divided into vertically striped red, green, and blue dots, and the panel can display 17.6 million colors.
1.2 Feature
-Module Design
-RoHS Compliant
-TFT Interface: MIPI
General specifications
| No. | Item | Specification | Unit |
| 1 | LCD Size | 3.5 | inch |
| 2 | Panel Type | IPS | - |
| 3 | Resolution | 320 x (RGB) x 480 | pixel |
| 4 | Display Mode | Transmissive,Normal Black | - |
| 5 | Display Number of Colors | 17.6M | - |
| 6 | Viewing Direction | ALL | - |
| 7 | Contrast Ratio | 500 | - |
| 8 | Luminance | 250 | cd/m2 |

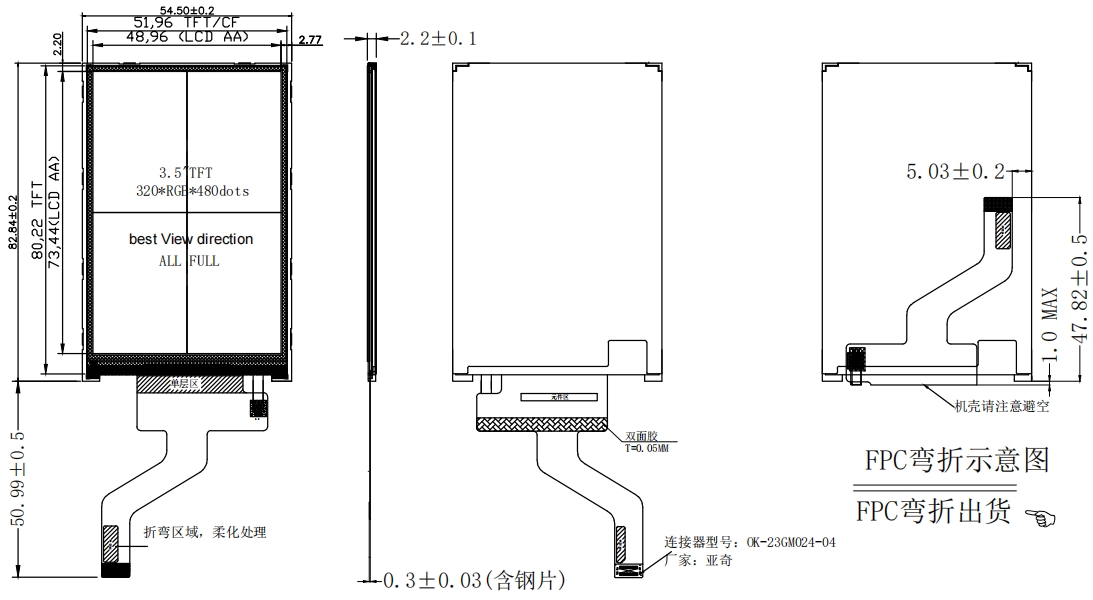

| 9 | Module Size | 54.50(H) x 82.84(V) x2.2(D) | mm |
| 10 | Active Area | 48.96(H) x 73.44(V) | mm |
| 11 | Pixel Pitch | 0.035(H) x 0.035(V) | mm |
| 12 | Weight | 9 | g |
| 13 | Driver IC | ILI9488 | - |
| 14 | Driver IC RAM Size | 320x24x480 | bit |
| 15 | Light Source | 6 LEDs White | - |
| 16 | Interface | MIPI | - |
| 17 | Operating Temperature | -20~70 | ℃ |
| 18 | Storage Temperature | -30~80 | ℃ |

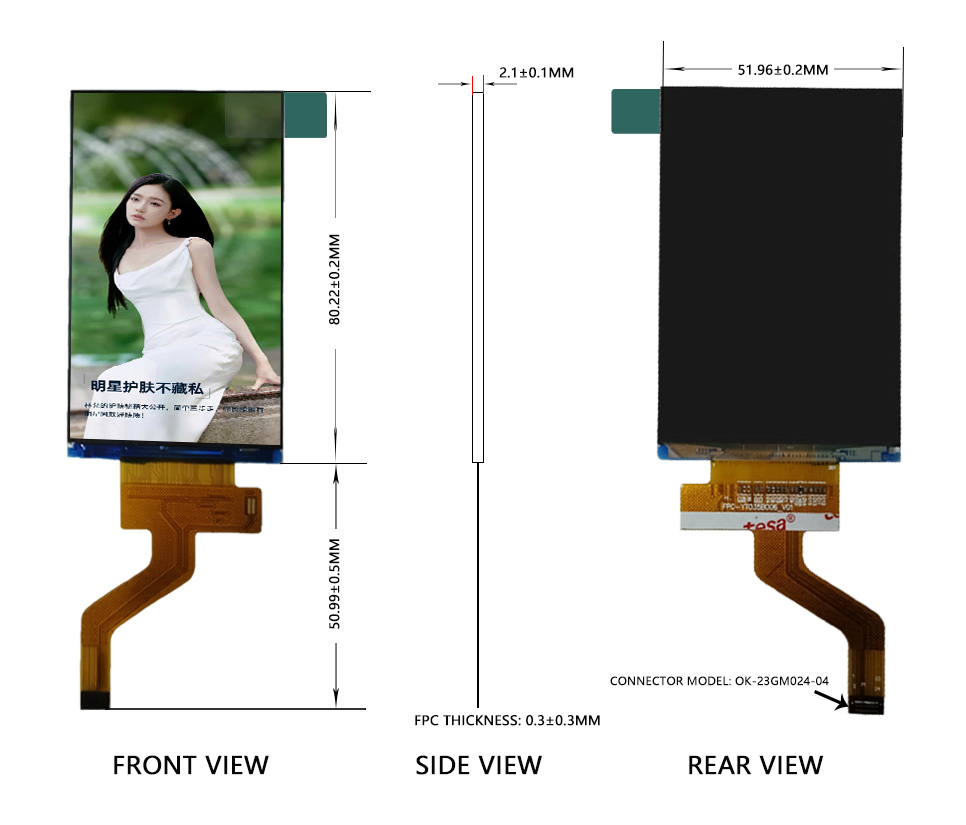

Product Details
Our factory
FAQ
Q1.What is your product range?
A1: We are 12 years of experience manufacturing TFT LCD and touch screen.
>0.96" to 32" TFT LCD Module;
>Bar type LCD screen up to 48 inch;
>High brightness LCD panel custom;
>Capacitive touch screen up to 55"
>4 wire 5 wire resistive touch screen;
>One-step solution TFT LCD assemble with touch screen.
Q2.Can you custom the LCD or touch screen for me?
A2: Yes we can provide the custom services.
>For the LCD display,backlight brightness and FPC cable can be customized;
>For the touch screen,we can custom the whole touch panel like the color,shape,cover thickness and so on according to the customer's requirement.
>NRE cost will be refunded after the total quantity reaches 1K pcs.
Q3.Which applications your products are mainly used for?
A3: Embedded system, Intercom system,Biometric,HMI,Smart home ,Robot,Hand-held PDA, after market automotive and etc.
Q4.What's the delivery time?
A4: >For samples order, 1-2weeks;
>For mass ordres,4-6weeks.
Q5.Do you provide free samples?
A5: For first time cooperation,samples will be charged,the amount will be returned at the mass order stage. In regular cooperation, samples are free. Sellers keep the right for any change.
Q6. Where can I get the datasheet, initialization code and other technical files ?
A6:Unfortunately, This can not Support upload/download the files for the time being, please contact with our sales.chat on Trade Manager or send me a email (dyh0707@foxmail.com), we will send the datasheet by mail.
